BASIC INTRODUCTION
DC Fast Chargers
High power charging (HPC) is a term used to describe charging systems for electric vehicles (EVs) that provide high levels of charging power, typically 150 kW or more. Support line has 240kW and higher EV chargers, allowing drivers to extend their range and minimize charging times.
| Input Type | 3-Phase |
|---|---|
| Grid Frequency | 50HZ or 60hZ |
| DC Output | 150V-1000V DC, 200A |
| Rate Power | 60KW-240KW |
| Charge Connector | CCS Combo 1/2 Plug |
| Charging Protocol | OCPP1.6J |
WHAT BENEFITS OF COMMERCIAL EV CHARGING STATIONS?
The most common types of commercial EV charging stations are Level 2 chargers and DC fast chargers. Level 2 chargers use 240-volt AC power and can charge an electric car in a few hours, while DC fast chargers use direct current (DC) and can charge an electric car in as little as 30 minutes. These chargers can be installed in public places such as parking lots, shopping malls, airports, gas stations, and along highways.
PRODUCT DETAILS

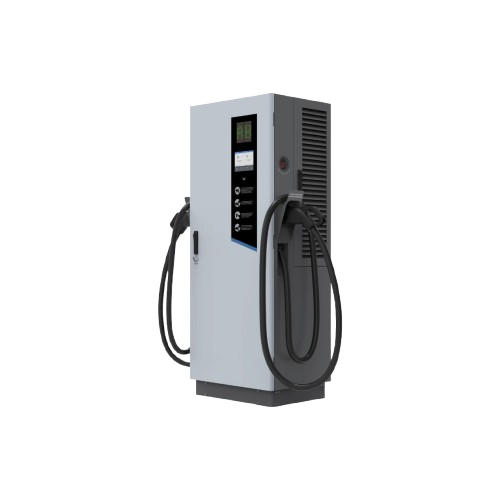

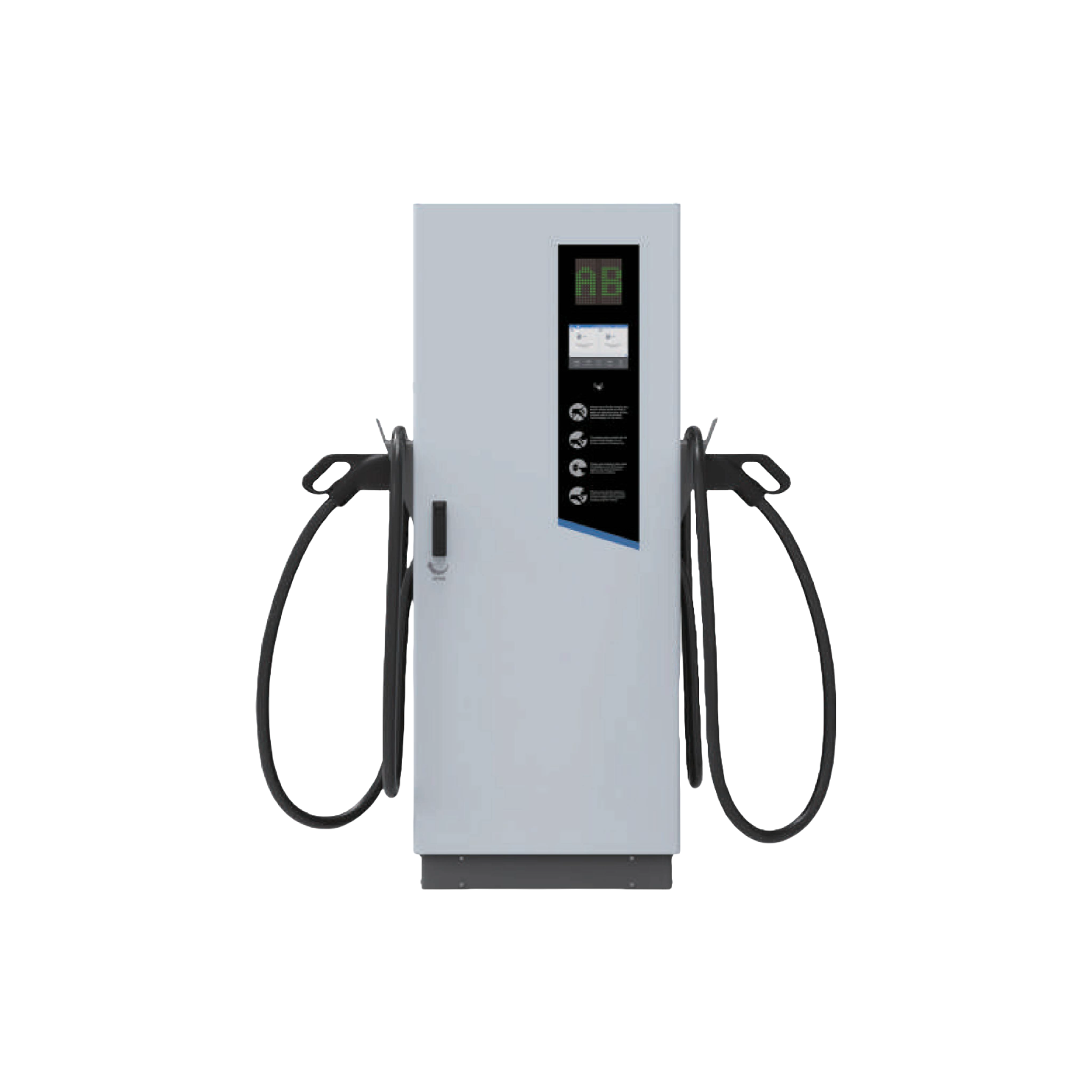

DC Fast EV charger station. It is easy to install, stable in performance, and provides complete protection function. The LCD display can show the charging status, user friendly. It supports GSM/3G/4G/Ethernet communication with party system for remote monitoring/maintain/upgrade. The charger can optionally equip with a column support installed outdoors.
SPECIFICATIONS
| Parameter | Description |
|---|---|
| Rated Voltage | 400VAC±15% |
| Frequency | 50/60 Hz |
| THDi | ≤5% |
| Efficiency | ≥95% |
| Power Factor | ≥0.98 |
| Cable Length | 5m |
| LCD | GSM/3G/4G/Ethernet |
| Payment Method | RFID Card,APP |
| Place of Installation | Indoor / Outdoor |
